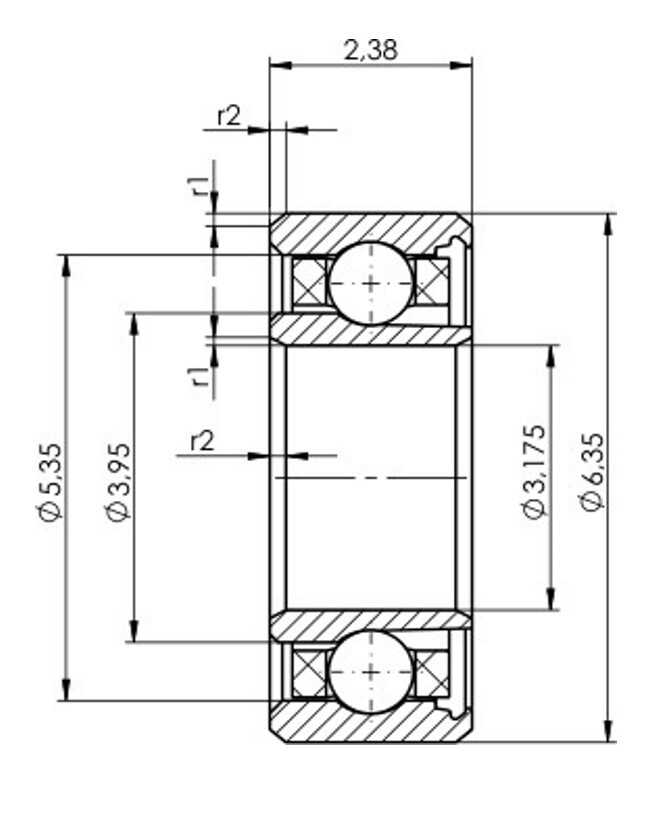

DIMENSIONS |
|
|
|
|
Inner Diameter | d | = | 3,175 | [mm] |
Outside Diameter | D | = | 6,35 | [mm] |
Width | B | = | 2,38 | [mm] |
Speed Capacity | n | = | 500.000 | [U/min] |
ASSEMBLY DIMENSIONS |
|
|
|
|
Shaft | da min | = | 3,75 | [mm] |
Housing Unit | Da max | = | 5,75 | [mm] |
DESIGN |
|
|
|
|
Rolling Element Material |
| = | Ceramic (HY) |
|
Inner Ring / Outer Ring Material |
| = | X65Cr13 |
|
General Type |
| = | Angular Contact |
|
Closure Type |
| = | Open |
|
Retainer/Cage Type |
| = | Thermoplastic |
|
