DIMENSIONS |
|
|
|
|
|
Inner Diameter |
d |
= |
3 |
[mm] |
|
Outer Diameter |
D |
= |
10 |
[mm] |
|
Width |
B |
= |
4 |
[mm] |
|
Speed Capacity |
n |
= |
66.000 |
[U/min] |
|

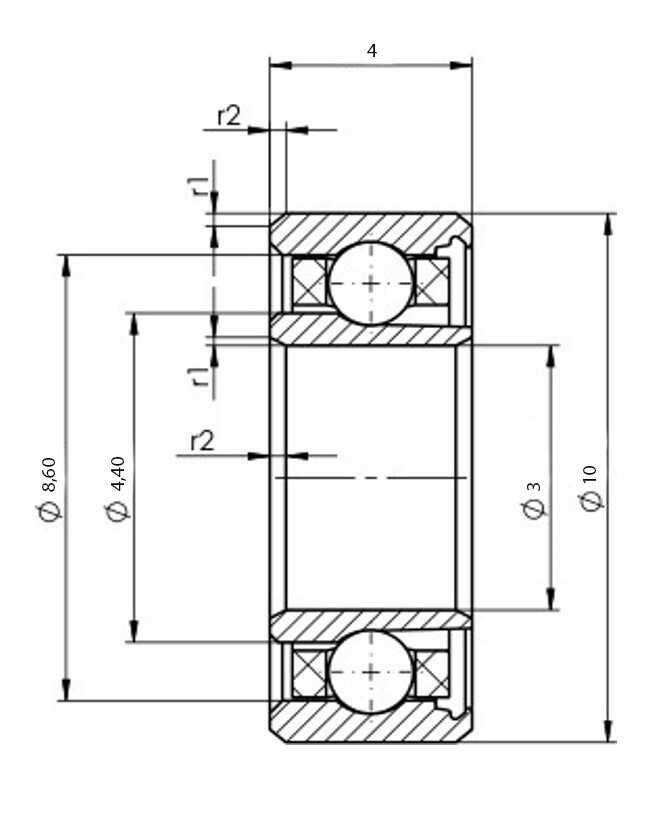

ASSEMBLY DIMENSIONS |
|
|
|
|
|
Shaft |
da min |
= |
4,40 |
[mm] |
|
Housing Unit |
Da max |
= |
8,60 |
[mm] |
|
DESIGN |
|
|
|
|
|
Rolling Element Material |
|
= |
XR65Cr13 |
|
|
Inner Ring / Outer Ring Material |
|
= |
XR65Cr13 |
|
|
General Type |
|
= |
Deep Groove |
|
|
Closure Type |
|
= |
ZZ |
|
|
Retainer/Cage Type |
|
= |
Stainless Steel |
|
