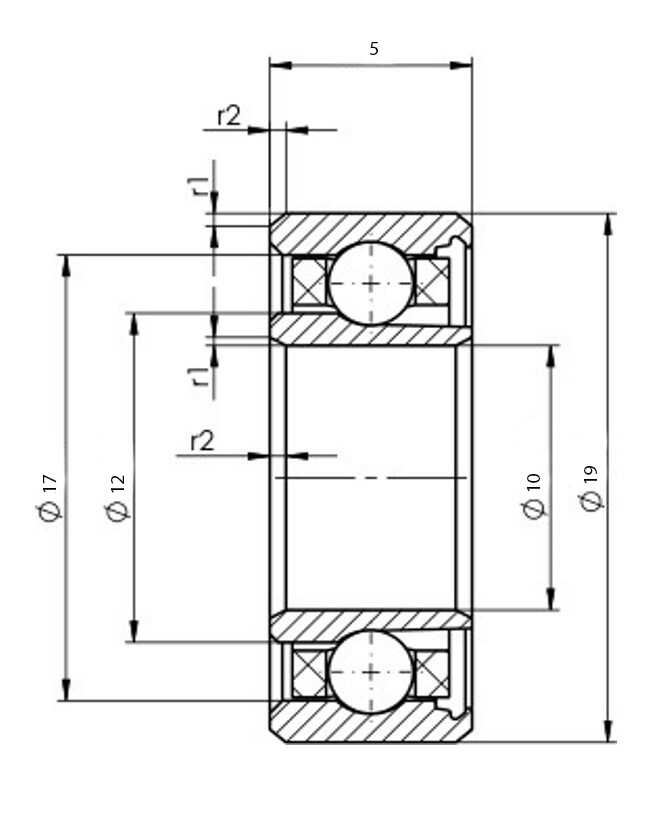

DIMENSIONS |
|
|
|
|
Inner Diameter | d | = | 10 | [mm] |
Outside Diameter | D | = | 19 | [mm] |
Width | B | = | 5 | [mm] |
Speed Capacity | n | = | 34.000 | [U/min] |
ASSEMBLY DIMENSIONS |
|
|
|
|
Shaft | da min | = | 12 | [mm] |
Housing Unit | Da max | = | 17 | [mm] |
DESIGN |
|
|
|
|
Rolling Element Material |
| = | XR65Cr13 |
|
Inner Ring / Outer Ring Material |
| = | XR65Cr13 |
|
General Type |
| = | Deep Groove |
|
Closure Type |
| = | ZZ |
|
Retainer/Cage Type |
| = | Stainless Steel |
|
