DIMENSIONS |
|
|
|
|
Inner Diameter | d | = | 8 | [mm] |
Outside Diameter | D | = | 16 | [mm] |
Width | B | = | 6 | [mm] |
Speed Capacity | n | = | 40.000 | [U/min] |

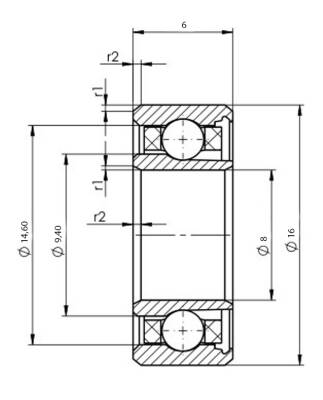

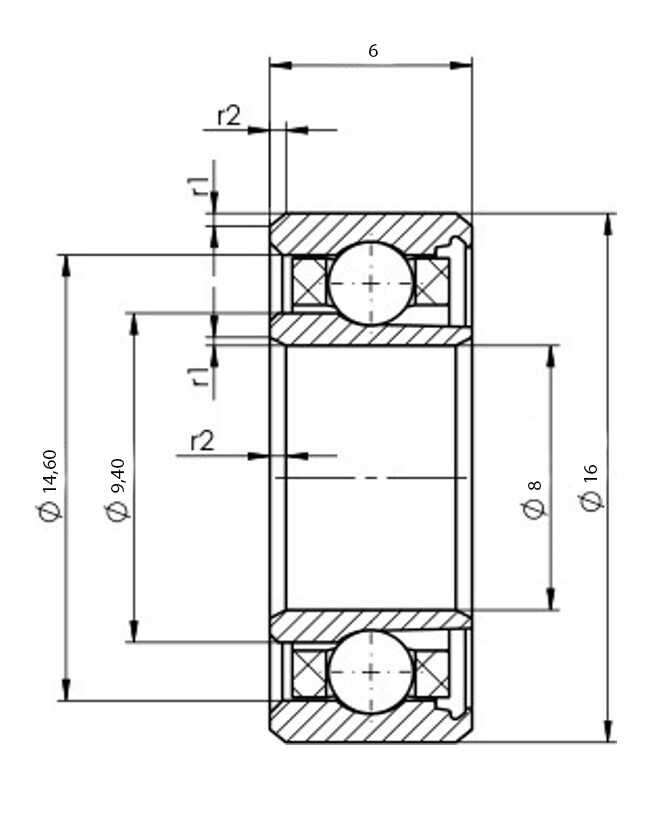

ASSEMBLY DIMENSIONS |
|
|
|
|
Shaft | da min | = | 9,40 | [mm] |
Housing Unit | Da max | = | 14,60 | [mm] |
DESIGN |
|
|
|
|
Rolling Element Material |
| = | XR65Cr13 |
|
Inner Ring / Outer Ring Material |
| = | XR65Cr13 |
|
General Type |
| = | Deep Groove |
|
Closure Type |
| = | ZZ |
|
Retainer/Cage Type |
| = | Stainless Steel |
|
Inner (d) MM
8
Outer (D) MM
16
Width (B) MM
6
Speeding Limit /Per Minute
40000
